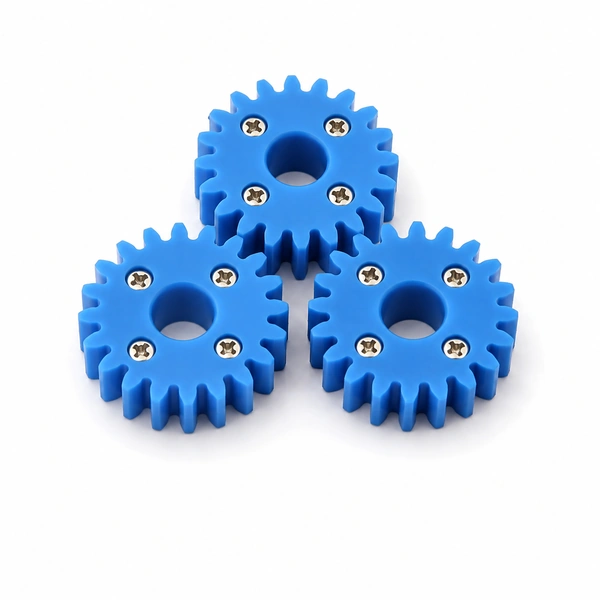

Ever-Power Impact Resistance Small Gear Mc Nylon Plastic Gear

Ever-Power impact-resistance small gear — MC Nylon plastic gear — Korea Ever-Power produces impact-resistance small gears in MC Nylon plastic for demanding applications in packaging equipment, small conveyors, agricultural machinery, and planetary gear sets. Shape: spur (standard); also per demand. Model: customised. Product name: nylon gear. Colour: natural, white, black, green, blue, yellow — or as required. Density: 1.2 g/cm². Certification: ISO9001, SGS, FDA, RoHS, Test Report, and others. Free sample: available. Korea Ever-Power is a plastic gear manufacturer — producing plastic gears for projects where engineers must consider torque, rotational speed, and shock loads; also clearance requirements and inertia. If operating parameters are out of control, alternative solutions include increasing the gear width. The final product must be durable enough to withstand harsh operating conditions.

Korea Ever-Power's impact-resistance MC Nylon small gears are the product international B2B buyers who need a small gear with proven impact resistance for real-world industrial service — not a laboratory specification. The choice of resin and lubricant compatibility is critical: some resins are resistant to oil and grease while others may affect performance; lubricants must be chosen carefully as some chemically attack plastics. Korea Ever-Power selects the correct resin for each project's small gear application. Free sample available. Quote 24 hours. Start from sample or drawing.

Impact Resistance

MC Nylon Spur

MC Nylon Pinion

Nylon Planetary

Torque, Speed, and Shock Load Design

When designing impact-resistance MC Nylon small gears for a project, engineers consider torque (determines tooth bending stress — must be below MC Nylon's fatigue limit of ~55 MPa for root), rotational speed (determines sliding velocity and surface contact temperature), and shock loads (transient peak torques from machine engagement, jam events, and external impacts — typically 3–10× rated torque). Impact-resistance MC Nylon's Charpy notched impact strength of 45–50 kJ/m² (vs 8–12 kJ/m² for standard PA6) provides the margin needed to survive shock loads that standard nylon small gears cannot. Korea Ever-Power calculates all three parameters for each small gear project before production.

Clearance Requirements and Inertia

Clearance requirements (backlash) and inertia are the two remaining parameters engineers consider for impact-resistance small gear projects. Backlash must accommodate thermal expansion (MC Nylon CTE ≈ 90×10⁻⁶/°C) without binding; for small gears (OD < 50 mm), a typical backlash allowance of 0.05–0.10 mm (room temperature) prevents thermal binding up to 80°C. Inertia: at density 1.2 g/cm², MC Nylon small gears have 6.5× lower rotational inertia than steel for the same geometry — enabling faster acceleration in high-cycle applications (packaging, labelling) and reducing motor size and energy consumption. If backlash or inertia are out of control, increasing the gear width is an alternative solution — Korea Ever-Power reviews all these parameters.

Resin Selection for the Specific Environment

The choice of resin for impact-resistance small gears is essential to performance. Carefully selecting the suitable resin for each project is critical because some resins perform poorly in specific environments — PA6/MC Nylon swells in high-humidity, weakening tooth roots over time (solution: POM for wet/humid environments); some resins degrade in UV (outdoor applications: black UV-stabilised MC Nylon; solution: add 2% carbon black); some resins are chemically incompatible with process chemicals (FDA environments: POM-C or UHMWPE; aggressive acid/base: PVDF or PTFE; high temperature > 150°C: PEEK or PPS). Korea Ever-Power's resin selection review at the inquiry stage identifies and eliminates all environmental incompatibilities before the small gear is produced.

Lubricant Compatibility — Avoiding Chemical Attack

Lubricants must be chosen carefully when they contact impact-resistance MC Nylon small gears, as some lubricants chemically attack plastics — reducing the resin's molecular weight and causing early gear failure. Problematic combinations: some synthetic esters attack POM (pitting and surface cracking); aromatic-base mineral oils swell and soften PA6/MC Nylon; PTFE-base greases are inert to all engineering plastics but thin rapidly at high temperatures. Safe choices for MC Nylon small gears: silicone greases, food-grade PFPE greases, or PAO-base mineral greases. Korea Ever-Power recommends using oil-containing MC Nylon (green/blue colour, built-in lubricant) to eliminate external lubricant compatibility concerns entirely for sealed drive applications.

Increasing Gear Width — Solving Under-Strength

If operating parameters — torque, speed, shock loads, clearance, inertia — are out of control, increasing the gear width (face width) is an alternative solution. Face width increase distributes the tooth load over a larger tooth contact area, reducing the root bending stress and extending gear life without changing the module or tooth count. For impact-resistance MC Nylon small gears, Korea Ever-Power typically recommends face width = 8–12× module as the starting point (vs 6–8× module for standard nylon small gears), providing the additional margin for impact loads while keeping the small gear compact. For persistently over-stressed small gears, Korea Ever-Power recommends either face width increase or material upgrade (PA66+GF30 or PEEK) as the two engineering solutions.

Full Certification Package — ISO9001, SGS, FDA, RoHS

Korea Ever-Power's impact-resistance MC Nylon small gears are certified to the full certification package: ISO9001 (quality management system — production traceability, process control, calibrated measurement), SGS (third-party product testing and certification), FDA (food-contact compliance for food-grade MC Nylon and POM small gears), and RoHS (restriction of hazardous substances — confirms the plastic small gear does not contain restricted heavy metals or flame-retardant additives). This complete certification package makes Korea Ever-Power's small gears suitable for supply chains requiring multi-standard compliance — particularly food processing, medical devices, and international electronics markets.

Packaging Equipment — Small Timing Gears

Impact-resistance MC Nylon small gears in packaging equipment timing drive gear trains — filling machine index gear sets, label applicator timing gears, and pouch sealer drive small gears. Packaging equipment small gears must survive the shock loads from product jams, misfed bags, and mechanical end-stops that periodically cause sudden drive arrest — impact-resistance MC Nylon's 4–5× higher Charpy impact strength vs standard PA6 provides the survival margin these jam events require.

Small Conveyors — Impact-Resistance Drive Gears

Impact-resistance MC Nylon small gears in small conveyor head drive gearboxes — belt-driven conveyor gear sets for laboratory conveyors, accumulation conveyor gears, and light industrial product transfer conveyor drives. Small conveyor drives are commonly cited as a primary application for impact-resistance plastic gears — the combination of self-lubrication (no maintenance access in sealed conveyor head), corrosion resistance, and impact resistance for product-loading shock events makes MC Nylon the material of choice over standard nylon or POM small gears.

Agricultural Machinery — Field-Tough Small Gears

Impact-resistance MC Nylon small gears in agricultural machinery — seeder metering gear sets, sprayer pump drive small gears, harvester auxiliary drive pinions, and irrigation control gear mechanisms. Agricultural machinery small gears must survive stone strikes transmitted through the soil-engaging implements, sudden drive clutch engagement at field speed, and abrasive crop debris contact. Impact-resistance MC Nylon small gears at 1.2 g/cm³ density are also significantly lighter than metal alternatives — reducing unsprung weight in pull-behind implements and lowering the moment of inertia of fast-cycling seeder mechanisms.

Planetary Gear Sets — Planet and Sun Gears

Impact-resistance MC Nylon small gears as planet gears and sun gears in plastic planetary gear sets. Plastic gears are commonly used in planetary gear sets — transmitting power through right angles on the shaft and providing the compact coaxial reduction that planetary arrangements offer. Planet gears in a plastic planetary set experience the highest load cycles per unit time of any gear in the set — the impact-resistance MC Nylon's fatigue life advantage over standard PA6 (2–3× more load cycles before root crack initiation) makes it the preferred material for plastic planet gears in demanding planetary gear set applications.

Food Processing — FDA-Certified Small Gears

FDA-certified impact-resistance MC Nylon small gears (white or natural colour, food-grade) in food processing conveyor drives, food portioning machine gear sets, and bakery equipment timing gears. The FDA certification satisfies food-contact compliance requirements for small gears in direct product-contact zones; the impact-resistance property provides durability in the harsh CIP (clean-in-place) wash cycles and mechanical shock events of food processing environments; the full RoHS certification confirms no restricted substances are present in the food-grade MC Nylon material.

Harsh Operating Conditions — Durable Project Gears

Impact-resistance MC Nylon small gears for project applications requiring durability in harsh operating conditions — outdoor UV exposure (black UV-stabilised MC Nylon), high-humidity environments (oil-containing MC Nylon for reduced moisture sensitivity), chemically aggressive environments (PVDF or POM for strong acid/base), and high-temperature service (PEEK or PPS grades). Korea Ever-Power's material selection service ensures the impact-resistance small gear for the customer's project is specified in the correct grade for the actual operating conditions — preventing the resin selection errors that cause early small gear failure in demanding environments.

How do I provide Korea Ever-Power with what I need if I only have a worn small gear as reference, not a drawing?

Korea Ever-Power's "start from sample" service accepts the worn small gear as the starting point: Korea Ever-Power measures the gear (OD, bore, tooth count, face width, module, pressure angle — measured on a gear measurement instrument) and produces a formal engineering drawing from the measurement. The drawing is sent to the customer for approval before production begins, confirming that the measured dimensions match the customer's expectations. Once the customer approves the drawing, production proceeds to the confirmed specification. This reverse-engineering service is included at no additional charge for standard small gear geometries. Free samples from the first production batch are provided for functional verification before the full production order is confirmed.

Why does Korea Ever-Power offer FDA certification for an impact-resistance MC Nylon small gear — when do I need it?

Korea Ever-Power offers FDA certification for impact-resistance MC Nylon small gears because a significant portion of small gear applications involve food-contact environments — food processing conveyors, packaging machine drives, and beverage bottling equipment — where the gear is in or near contact with food products. The FDA certification confirms that the plastic material used in the small gear is listed under 21 CFR (Code of Federal Regulations) as acceptable for food-contact use — a regulatory requirement in the USA, and referenced by food safety standards (BRC, SQF, GFSI) in other markets. If your small gear application is in a food processing or packaging environment, request the FDA certificate with your order. For non-food applications, the ISO9001, SGS, and RoHS certificates are the standard compliance documentation. Contact Korea Ever-Power for a free sample of the impact-resistance MC Nylon small gear for your project.

"We make bread-slicing machines for industrial bakeries and needed FDA-certified impact-resistance MC Nylon small spur gears (M1.5, 18T, white) for our drive train. Previous standard PA6 gears fractured regularly from bread-loaf jam shock loads — repair call-out at customer bakeries was costing us €180 per event. Korea Ever-Power's impact-resistance MC Nylon small gears: zero fractures at 14 months across 34 machines in service. FDA certificate received with first delivery. Korea Ever-Power reverse-engineered from our worn original gear — no drawing needed. Free sample arrived in 22 days; fit confirmed perfectly. We're now standard-specifying Korea Ever-Power impact MC Nylon gears across our entire drive train."

Kim Min-jun  |  Bakery Equipment Chief Engineer, Incheon Food Machinery Co.  ·  Q2 2026

"We build small conveyors for sorting and assembly lines and specify impact-resistance green oil-containing MC Nylon small gears (M2, 24T, 20 mm face) from Korea Ever-Power in all our sealed conveyor head gearboxes. ISO9001 certificate and RoHS certificate provided — both required by our customers' supplier qualification system. Resin selection: Korea Ever-Power recommended oil-containing grade to eliminate lubricant compatibility concerns in our sealed gearboxes — confirmed zero lubricant migration to conveyor belt surface at 18-month inspection. Shock load test (product jam simulation, 8× rated torque): all gears survived 1,000 cycles without crack initiation. Noise reduction vs previous steel small gears in same gearbox: 9 dB(A)."

Lee Soo-hyeon  |  Conveyor Systems Design Engineer, Gyeonggi Conveyor Systems Co.  ·  Q4 2025
