Wear Resistance Plastic Drive Uhmw-pe Chain Sprocket Wheel Plastic Gear

UHMW-PE (Ultra-High Molecular Weight Polyethylene) chain sprocket wheels are drive sprockets for conveyor chains and roller chains machined from reinforced UHMW-PE — an engineering plastic with exceptional wear resistance, extremely low friction coefficient, high impact strength, near-zero water absorption, and outstanding chemical resistance. All sprocket teeth are toothed to ensure smooth operation and correct sprocket-chain interaction. Korea Ever-Power's UHMW-PE sprocket wheels are CNC-machined to maintain very accurate tooth profiles for correct chain pitch engagement and wear resistance. The use of UHMW-PE greatly reduces noise vs metal sprockets. These plastic sprockets are significantly lighter than steel sprockets and highly resistant to corrosion and chemical attack. Material: reinforced UHMW-PE. Colour: green (standard) or custom. Sprocket model: drive sprocket. Processing: CNC machine. Certification: ISO, ISO9001:2008.

Korea Ever-Power's UHMW-PE sprocket wheels are the preferred choice for food processing conveyors (FDA-listed material, no lubricant contamination), bottling line chain drives (chemical wash resistance), agricultural machinery chain drives (outdoor chemical exposure), and packaging machinery (quiet operation). Quote within 24 hours. Mould lead time 25–35 days (simple: 15 days). Start from customer sample if no drawing available. Video QC inspection before shipment.

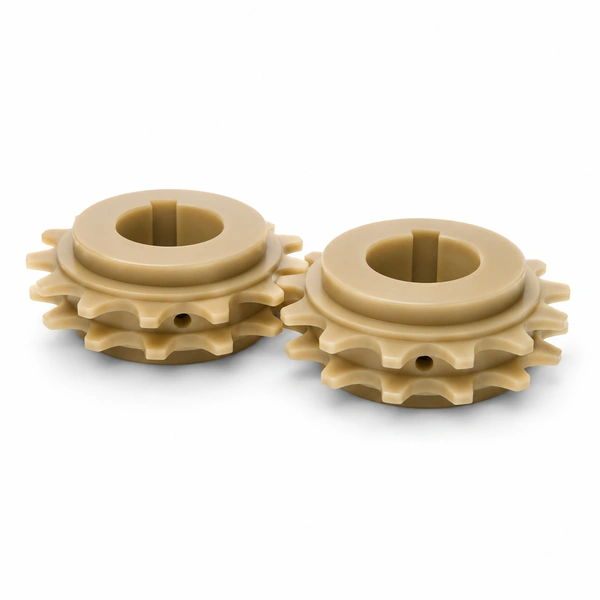

Drive Sprocket

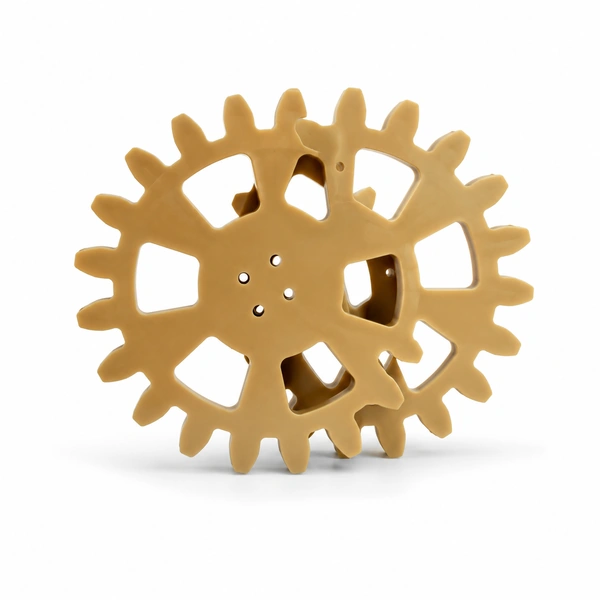

Large Sprocket

POM Sprocket

Exceptional Wear Resistance

UHMW-PE has outstanding abrasion resistance — its wear rate under sliding contact is 2–7× lower than nylon, POM, or HDPE at equivalent loads and speeds. The very high molecular weight (3–9 million g/mol, vs 250,000 for standard HDPE) produces a material with polymer chain entanglement so high that individual chains cannot be pulled out of the surface under abrasive contact — the fundamental mechanism of UHMW-PE's superior wear resistance. For sprocket wheel teeth in continuous chain drive contact, this wear resistance translates to dramatically longer tooth life than lower-grade plastics or inadequately lubricated metal sprockets.

Ultra-Low Friction — Self-Lubricating

UHMW-PE has the lowest friction coefficient of any unreinforced thermoplastic — μ ≈ 0.04–0.08 against steel chain links. This near-PTFE friction level provides excellent self-lubrication of the chain-sprocket interface, eliminating the need for chain lubricant in many food, pharmaceutical, and clean applications. The smooth, waxy surface finish of UHMW-PE naturally reduces the sliding friction at each chain link engagement, reducing chain elongation from link wear and extending chain service life alongside the sprocket.

Near-Zero Water Absorption

UHMW-PE absorbs less than 0.01% water — effectively zero. In food processing environments where sprockets are repeatedly exposed to high-pressure water washing (CIP — Clean In Place — systems using hot water and detergent), UHMW-PE sprocket wheels maintain their dimensional accuracy and tooth profile without the swelling that causes nylon sprockets to misalign with the chain pitch after washing cycles. This dimensional stability under wash-down is a critical requirement for food grade conveyor drives where chain pitch must be maintained within ±0.05 mm throughout the equipment's operating life.

Chemical Resistance

UHMW-PE is resistant to virtually all industrial chemicals — acids, alkalis, solvents, oils, and fats — at service temperatures below 80°C. This broad chemical resistance makes UHMW-PE sprockets suitable for bottling lines (acidic beverages, caustic cleaning agents), chemical plant conveyors (solvent exposure), and marine conveyors (salt water). Only strong oxidising acids (concentrated nitric acid, fuming sulphuric acid) and some aromatic/chlorinated solvents at elevated temperature cause significant attack. Korea Ever-Power confirms chemical compatibility for specific applications on request.

Noise Reduction

UHMW-PE sprocket wheels reduce chain drive noise by 6–12 dB(A) compared with steel sprockets at equivalent chain speed and load — a significant improvement in food factory and packaging line working environments where occupational noise exposure is a regulatory concern. The noise reduction comes from UHMW-PE's high internal damping (loss factor significantly higher than steel), which absorbs the chain impact energy at each tooth engagement rather than radiating it as sound. At high chain speeds (> 1 m/s), the noise advantage is most pronounced.

Lightweight and Corrosion-Free

UHMW-PE density: 0.93–0.94 g/cm³ — approximately 8× lighter than steel (7.85 g/cm³). A UHMW-PE sprocket weighs only 12% of the equivalent steel sprocket — reducing the dynamic load on conveyor drive bearings, reducing the inertia that the motor must overcome on start-up, and reducing the force that the chain transmits to the conveyor frame during acceleration. The corrosion-free property eliminates rust contamination of products in food, pharmaceutical, and chemical environments — a requirement that forces expensive stainless steel selection for metal sprockets in these applications.

Food and Beverage Processing

UHMW-PE chain sprockets in poultry processing conveyor drives, meat packing lines, bakery product conveyors, and beverage bottling line chain drives. FDA-listed UHMW-PE satisfies food contact material compliance; near-zero water absorption maintains chain pitch alignment through CIP wash cycles; chemical resistance withstands caustic cleaning agents; no lubricant contamination risk. The standard choice for upgrade from stainless steel or carbon steel sprockets in food factory chain drives.

General Industrial Conveyors

UHMW-PE drive sprockets in industrial chain conveyors for parts manufacturing, automotive assembly lines, and warehouse sorting systems. The maintenance-free self-lubrication eliminates the chain lubrication maintenance schedule that steel sprockets require; the noise reduction improves the working environment in high-noise factory areas; and the corrosion resistance suits outdoor or humid conveyor installations where steel sprockets rapidly rust without regular coating maintenance.

Agricultural Machinery

UHMW-PE sprockets in grain elevator chain drives, seed drill drives, and harvester chain conveyors. Agricultural chain drives operate in abrasive environments (grain dust, soil particles) where UHMW-PE's exceptional abrasion resistance significantly extends sprocket life versus nylon or POM. The resistance to agricultural chemicals (herbicides, fertilisers, and pesticides) prevents the material degradation that limits nylon and POM sprocket life in direct chemical exposure.

Pharmaceutical Packaging Lines

UHMW-PE sprockets in tablet sorting, blister packaging, and bottle filling line chain drives. Pharmaceutical production requires: zero particulate contamination (UHMW-PE's low wear rate and self-lubricating surface minimise particle generation); FDA material compliance (UHMW-PE is FDA-listed); and resistance to alcohol and IPA cleaning agents (excellent chemical resistance). UHMW-PE sprockets replace metal sprockets in pharmaceutical conveyor drives as GMP equipment qualification standards tighten.

Packaging Machinery

UHMW-PE sprockets in box erecting machine chain drives, shrink tunnel conveyor drives, and label application machine chains. In packaging machinery where chain noise directly affects the working environment of operators, UHMW-PE sprockets provide 8–12 dB(A) noise reduction vs steel at the same chain speed — making the packaging line compliant with workplace noise regulations without expensive acoustic enclosures around the machine.

Marine and Offshore

UHMW-PE sprockets in offshore platform chain conveyors, marine cargo handling equipment, and aquaculture feeding system chain drives. Salt water, high humidity, UV exposure, and temperature cycling from −40°C to +60°C are all conditions that rapidly corrode carbon steel sprockets. UHMW-PE's immunity to all these environmental factors (plus its extremely high impact strength at low temperatures — it is used as cryogenic impact protection material) makes it the preferred alternative to stainless steel in marine chain drive applications.

Why is UHMW-PE better than nylon or POM for chain sprocket wheels?

UHMW-PE outperforms nylon and POM in three critical sprocket wheel properties: wear resistance (2–7× lower wear rate than nylon or POM under abrasive sliding contact — the dominant wear mechanism for chain-sprocket interaction); water absorption (< 0.01% vs 2–3% for nylon — maintains chain pitch alignment through CIP wash cycles); and friction coefficient (μ ≈ 0.04–0.08 vs μ ≈ 0.10–0.30 for nylon/POM — better self-lubrication of the chain-sprocket interface). Nylon and POM outperform UHMW-PE in tensile strength and dimensional precision for gear tooth applications — but for chain sprocket wheels where wear resistance, chemical resistance, and food-grade compliance are the primary requirements, UHMW-PE is the correct material choice.

Can Korea Ever-Power machine UHMW-PE sprockets to match an existing steel sprocket's chain pitch?

Yes — Korea Ever-Power CNC-machines UHMW-PE sprocket wheels to any standard chain pitch (ANSI 25, 35, 40, 50, 60, 80, and European DIN 8187/8188 pitches) and non-standard pitches from customer drawings or samples. Korea Ever-Power can also match a worn steel sprocket's original profile from measurement of the original — providing a direct drop-in replacement UHMW-PE sprocket for an existing conveyor without any chain or conveyor modification. Contact Korea Ever-Power with your chain pitch, tooth count, bore diameter, and face width for a quotation.

"We operate a poultry processing plant and replaced all steel sprockets on our kill-line chain conveyors with UHMW-PE sprockets (25B, 14T) from Korea Ever-Power. Previous steel sprockets required lubrication every 48 hours; UHMW-PE sprockets: zero lubrication for 24 months of continuous operation. Chain elongation at 12 months: 0.6 mm/m (vs 1.8 mm/m with steel sprockets). Noise reduction: 9 dB(A) — brought our production floor below the mandatory 85 dB(A) action level without acoustic enclosures. FDA food-contact certificate provided."

Kim Byeong-hoon  |  Maintenance Manager, Incheon Poultry Processing Co.  ·  Q1 2026

"We manufacture packaging machinery and switched to UHMW-PE drive sprockets from Korea Ever-Power on our shrink tunnel conveyor drives. Tooth wear measurement after 6,000 operating hours: tooth height reduction 0.12 mm — equivalent steel sprockets showed 0.47 mm at the same interval. Customer acceptance improved significantly — the 10 dB(A) noise reduction made our machine compliant with the customer's factory noise policy without any acoustic modification. Korea Ever-Power supplied matching sprockets for 6 different chain pitches in the machine from a single order."

Lee Sang-hyeon  |  Packaging Machine Design Engineer, Gyeonggi Packaging Systems Co.  ·  Q4 2025
