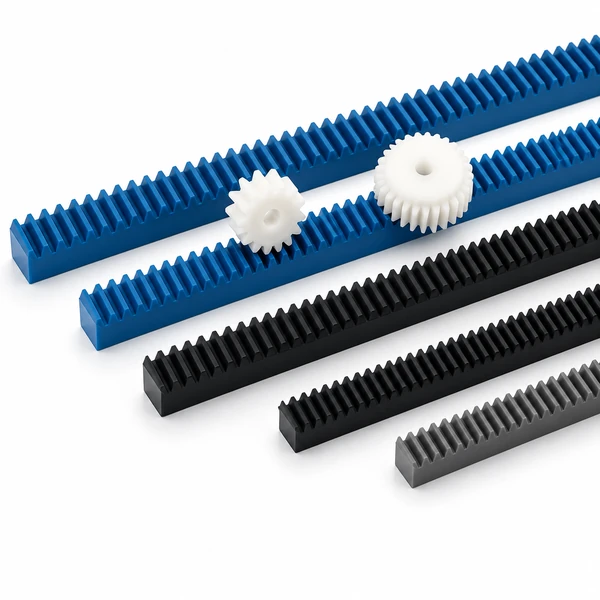

Engineering Plastic Injection Nylon Plastic Gear Rack | Low Noise Plastic Rack
Ever-Power engineering plastic injection nylon gear racks are CNC-precision machined from UHMW-PE, nylon, POM, and HDPE — or any customer-specified plastic grade — on high-precision 3-axis CNC and CNC milling machines. Key features are wear resistance, impact resistance, and easy machinability. The polymer tooth surface absorbs mesh impact energy that steel would transmit as structure-borne sound, delivering operating noise levels 10-15 dB lower than an equivalent steel rack at the same module and speed. Standard delivery is 5-15 working days; material datasheet and dimensional inspection report included with every order.
Engineering Plastic Nylon Gear Rack — Low Noise Overview
Ever-Power engineering plastic nylon gear racks are precision CNC-machined linear drive components manufactured from high-performance engineering polymers. Unlike injection-moulded racks — which require expensive dedicated tooling and are locked to fixed catalogue sizes — CNC machining allows any module, length, face width, cross-section profile, or hole pattern to be produced from your drawing without tooling cost. The machined tooth profile is inherently more accurate than a moulded one at the same module, making this approach appropriate for both standard applications and demanding precision drives.
The material range covers UHMW-PE (ultra-high molecular weight polyethylene), nylon (PA6 / PA66 / MC nylon), POM acetal, and HDPE — four of the most widely specified engineering plastics for rack and pinion applications. The key common properties across the range are low operating noise and self-lubrication. When a steel pinion tooth contacts a polymer rack tooth, the polymer surface deforms elastically at the contact point, absorbing the impact energy that would otherwise radiate as structure-borne sound through the machine frame. This gives a nylon or POM rack meshing with a steel pinion an operating noise level 10-15 dB lower than an equivalent all-steel mesh at the same pitch-line speed and module — the primary reason engineering plastic racks are specified in residential gate drives, hospital equipment, laboratory automation, and any noise-sensitive application.
Technical Specifications
| Parameter | Value / Options |
|---|---|
| Rack Material | UHMW-PE, Nylon (PA6 / PA66 / MC Nylon), POM Acetal, HDPE; or per customer specification |
| Rack Colour | Green, blue, natural (ivory), black; or customer-specified |
| Machining Process | High-precision 3-axis CNC and CNC milling machine |
| Key Features | Wear-resistant; impact-resistant; easily machined for modification or re-work |
| Standard Size | Customized per customer drawing; any module, length, and cross-section |
| Delivery | Usually 5-15 working days depending on order quantity and specification |
| Certification | ISO 9001:2015; material datasheet and dimensional inspection report with every order |
Engineering Plastic Materials — Properties and Selection
Plastic racks can be made from a variety of materials. The traditional PR series uses MC nylon, while the PRF series adds end machining to connect multiple sections for long-travel drives. The polyacetal-based DRFD and DRFK series include mounting holes. The injection-moulded DR series has unique flexibility properties suitable for curved-path locations. Selecting the correct grade depends on the daily cycle count, the force required, moisture and chemical exposure, and the dimensional stability required to maintain tooth contact ratio, tip clearance, and overall geometry throughout the expected service life.
| Material | Density | Tensile Strength | Friction vs Steel | Chemical Resistance | Best Suited For |
|---|---|---|---|---|---|
| UHMW-PE | 0.93-0.94 g/cm³ | 40-48 MPa | Very Low (0.08-0.20) | Excellent — most acids, alkalis, solvents | Food-contact, chemical handling, very-high-cycle silent drives |
| PA6 / PA66 Nylon | 1.13-1.15 g/cm³ | 65-85 MPa | Low (0.10-0.35) | Good — oils, fuels; moderate acid/alkali resistance | Sliding gates, greenhouse drives, general industrial |
| POM Acetal | 1.41-1.43 g/cm³ | 60-70 MPa | Low (0.10-0.30) | Good — weak acids/bases; very low moisture absorption | Wash-down, food processing, precision humid environments |
| HDPE | 0.94-0.97 g/cm³ | 21-37 MPa | Low | Excellent — broad chemical resistance | Light-duty chemical-resistant drives; cost-effective |
Applications
🏽 Residential Sliding Gates
Module M4 PA66 nylon racks in 1,000 mm sections are the European standard for residential gate motor systems. The polymer rack runs 10-15 dB quieter than an equivalent steel rack at the same speed — a critical factor where gates operate at night without disturbing neighbours. Self-lubrication eliminates the maintenance call-out for grease replenishment that steel rack gates require.
🤖 Medical and Laboratory Equipment
Hospital bed and dental chair height-adjustment drives, imaging equipment gantries, and laboratory automation linear axes specify nylon or POM racks where lubricant contamination is prohibited and noise in a clinical environment is unacceptable. UHMW-PE is the preferred grade for drives requiring both FDA compliance and very long maintenance-free service life.
🦻 Food and Pharmaceutical Processing
POM acetal racks maintain pitch accuracy after repeated wash-down — its below-0.2% moisture absorption is far lower than nylon at 1.5-3.5%. UHMW-PE racks are FDA-compliant for direct food-contact zones. Both grades resist the cleaning agents used in food and pharmaceutical production without surface degradation or swelling.
🌿 Greenhouse Automation
PA66 flexible nylon racks bend to follow curved ventilation rail paths without requiring a purpose-machined curved rack, simplifying installation. Long total travel lengths use butted PA66 sections with half-tooth machined ends. The plastic rack resists the humid, salt-laden greenhouse environment that would corrode a carbon steel rack within months.
 |
 |
 |
 |
Quality Assurance and Manufacturing
Ever-Power engineering plastic gear racks are produced under ISO 9001:2015 quality management on high-precision 3-axis CNC and CNC milling machines. Incoming polymer bar or plate stock is verified against the material datasheet before entering production. Tooth geometry is inspected by profile projector and gear tooth calliper on first-off and periodic pieces during each production run. Every order ships with material datasheet, batch inspection record, and dimensional report as standard.
ISO 9001:2015 and Quality Certificates
Documentation with every order:
- Material datasheet — polymer grade, mechanical properties, operating limits
- Batch inspection record — tooth pitch, face width, section length, straightness
- Dimensional report — critical dimensions verified against drawing
Related Gear Products
Ever-Power manufactures the complete range of industrial gear types alongside plastic racks. Matched plastic gears, steel spur pinions, steel gear racks, and all gear types are available from the same source.
Plastic Gears
Nylon and POM pinions for all-plastic, lubrication-free rack and pinion drives.
Spur Gears
Steel spur pinions to mesh with nylon racks — the most common paired configuration.
Helical Gears
Helical pinions for quieter, higher-load rack drives and speed reducer stages.
Planetary Gear Sets
Compact reducers for servo motor to pinion shaft in precision plastic rack drives.
Bevel Gears
Right-angle drive stages for compact gear motor input to the rack pinion shaft.
Worm Gear Wheels
Self-locking worm reducers for vertical rack axes holding position without a motor brake.
Ring Gears
Large-diameter ring gears for rotary kilns, slewing drives, and large machinery.
Frequently Asked Questions
What are the differences between UHMW-PE, Nylon, POM, and HDPE for gear racks?
UHMW-PE has the lowest friction coefficient and best impact resistance — it is preferred for very-high-cycle drives and food-contact zones requiring no lubrication and no metal contamination. Nylon (PA66) has the highest tensile strength among unfilled grades and is the most common all-round choice for sliding gates, conveyor diverters, and greenhouse drives. POM acetal is preferred when pitch accuracy must be maintained in humid or wash-down conditions, as its moisture absorption is below 0.2% compared to 1.5-3.5% for nylon. HDPE is the lowest-cost option with good chemical resistance, suitable for light-duty drives where budget is the primary constraint.
Why is CNC machining preferred over injection moulding for engineering plastic gear racks?
Injection moulding requires expensive dedicated tooling for each rack size and module — economical only for very large volumes of a single fixed specification. CNC machining has no tooling cost, allows any module, length, face width, hole pattern, or cross-section from a single setup, and achieves higher tooth accuracy than a moulded part at the same module. For custom OEM applications — which represent the majority of engineering plastic rack requirements — CNC machining is consistently the more practical and cost-effective solution.
What colours are available, and does colour indicate the material grade?
Standard colours are green, blue, and natural (ivory). Colour is not a reliable indicator of material grade — different manufacturers use different colour conventions, and the same polymer can be supplied in multiple colours. MC nylon is often blue (MC901 oil-impregnated grade) but natural and black variants are also available. POM acetal is most commonly natural or black. Always specify the material grade explicitly — not just the colour — when ordering to avoid receiving a lower-performance alternative grade.
Request a Quotation for Engineering Plastic Gear Racks
Send your drawing, material grade, module, length, and quantity. We return a price and delivery confirmation within 24 hours.
Additional information
| Editor |
|---|
Related products
-
Factory Plastic Rack Gear | Customized Nylon Gear Rack OEM Hobbing
-
Injection Moulding Wear-resistant Corrosion Resistant MC Nylon PA66 Plastic Gear Rack
-
Plastic Gear Rack and Pinion | Nylon Gear Rack for Sliding Gate
-

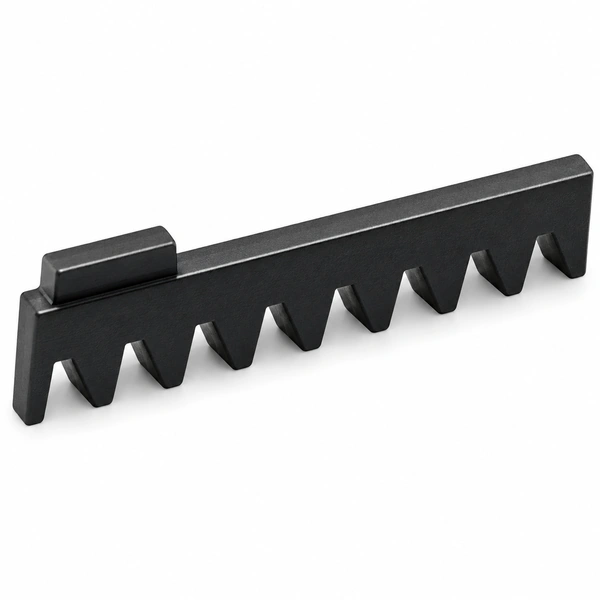

Good Tensile Strength Nylon Plastics Rack for Sliding Gate
-
