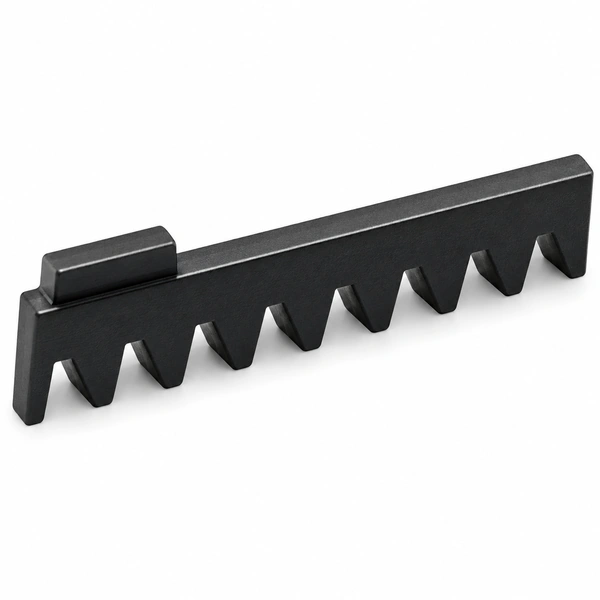

Good Tensile Strength Nylon Plastics Rack for Sliding Gate
Ever-Power good tensile strength nylon plastics racks for sliding gate drives are injection-moulded in nylon, POM, and plastic PA grades across module 0.5 to 5.0 — material options include PA6, PA66, PA66+GF, POM, ABS, UPE, PE, PP, PC, PVC, PEEK, and others. Material density 1.2-1.5 g/cm2 depending on grade. Colour: white, black, green, natural, blue, yellow. Diameter 5-200 mm or customized. ISO 9001:2015, SGS, RoHS, and test report certification. Packing: plastic bags, cartons, wooden case, pallet, container. 24-hour quote response; mould lead time 15-35 days. All sizes, colours, quantities, and materials customized per drawing.
Good Tensile Strength Nylon Plastics Rack for Sliding Gate — Overview
Ever-Power good tensile strength nylon plastics racks for sliding gate drives are injection-moulded and CNC-machined from engineering-grade nylon and plastic PA materials in modules 0.5 to 5.0, selected for the combination of tensile strength, impact resistance, and self-lubrication that sliding gate rack applications require. Tensile strength is the primary structural property that determines whether a rack tooth withstands the tangential force applied by the gate motor pinion — if the tangential load approaches the tooth bending stress limit, tooth fatigue failure occurs at the tooth root after a relatively small number of cycles. For residential gate drives at M4 PA66 with 20 mm face width, the safety factor on tooth bending stress under normal gate weight and wind loading is typically 3-5 — ensuring many years of reliable operation before tooth wear becomes the service-life limiting factor.
The injection moulding capability covers PA6, PA66, PA66+GF, POM, ABS, Nylon, UPE, PE, TPE, PP, PC, PVC, PET, PMMA, PPS, PEEK, and PAI — allowing the same supplier to provide racks for applications ranging from standard residential gate drives in PA66 through to wash-down food-processing conveyor racks in POM or high-temperature industrial drives in PEEK. All specific sizes, colours, quantities, and materials are customized per customer drawing.
Technical Specifications
| Parameter | Value / Options |
|---|---|
| Material | Acrylic, PC, PVC, Nylon, PEEK, PU, PA, POM, PE, UPE, PTFE, and others |
| Colour | White, black, green, natural, blue, yellow, and customer-specified |
| Diameter / Size | 5-200 mm, or customized per drawing |
| Condition | In stock / made to order |
| Shape | Per customer drawing; also available as sheet, rod, tube, gear, rack, pulley, guide rail, and plastic fittings |
| Certification | ISO 9001:2015, SGS, RoHS, test report |
| Packing | Plastic bags, cartons, wooden case, pallet, container |
| Module (Short desc) | 0.5 to 5.0 |
| Injection Moulding Materials | PA6, PA66, PA66+GF, POM, ABS, Nylon, UPE, PE, TPE, PP, PC, PVC, PET, PMMA, PPS, PEEK, PAI, and others |
| Lead Time | Quote within 24 hours; mould lead time 15-35 days depending on complexity |
Tensile Strength Comparison — Nylon Rack Grades for Sliding Gate
Tensile strength alone does not determine rack service life — impact toughness, elongation at break, and self-lubrication all matter equally. The table below compares the key mechanical properties of the nylon and plastic grades most commonly specified for sliding gate rack applications, to support correct material selection for different gate weights, cycle rates, and environments.
| Material Grade | Tensile Strength | Elongation at Break | Flexural Modulus | Gate Drive Suitability |
|---|---|---|---|---|
| PA6 (standard extruded) | 65-75 MPa | 30-50% | 2.5-3.0 GPa | Good — residential gate, light duty |
| PA66 (standard extruded) | 75-85 MPa | 20-40% | 2.8-3.5 GPa | Very Good — residential and commercial gate |
| MC Nylon / MC901 (cast) | 80-100 MPa | 10-30% | 3.0-4.0 GPa | Excellent — commercial and industrial gate, high-cycle |
| PA66+GF30 (glass-fibre) | 150-180 MPa | 3-5% | 8-10 GPa | Good where stiffness needed; lower toughness |
| POM Acetal | 60-70 MPa | 15-40% | 2.5-3.5 GPa | Good for wet/wash-down gate environments |
| UHMW-PE | 40-48 MPa | 300-500% | 0.5-0.9 GPa | Limited — very light gate only; very high impact |
Advantages of Nylon Racks for Sliding Gate Drives
✅ Good Tensile Strength
PA66 nylon provides 75-85 MPa tensile strength — adequate for residential gate tooth loads at M4 with a safety factor of 3-5 under normal gate weight and peak wind loading. MC nylon increases this to 80-100 MPa, extending the safety factor further and providing headroom for heavier commercial gates at the same module without requiring an upgrade to a larger module.
🔈 Low Noise Operation
The nylon tooth surface absorbs mesh impact energy that a steel rack would transmit as structure-borne sound through the gate leaf and frame. A PA66 nylon rack against a steel gate motor pinion operates at 10-15 dB lower noise level than an equivalent steel rack at the same module and speed — a significant advantage for residential gates operating at night in quiet neighbourhoods.
🌿 Outdoor Corrosion Immunity
Nylon does not rust or corrode in rain, frost, road salt, or coastal salt air. A nylon sliding gate rack survives 10-15 years outdoors without any surface treatment or periodic re-coating. UV-stabilised PA66 grades maintain surface colour and structural integrity in direct sunlight across the full outdoor service life of the gate installation.
🔧 Self-Lubricating — Zero Maintenance
The self-lubricating PA66 nylon tooth surface eliminates the periodic grease application required for steel rack gate drives. Over a 15-year gate service life, this represents a significant reduction in maintenance calls and lubricant cost. No lubricant on the rack also means no grease contamination of the gate frame surface, gate motor housing, or gate hardware.
 |
 |
 |
 |
Material of Plastic Gear Rack
Plastic racks can be made from a variety of materials. The traditional PR series uses MC nylon, while the PRF series adds end machining to connect multiple sections for long-travel drives. The polyacetal-based DRFD and DRFK series include mounting holes. The injection-moulded DR series has unique flexibility properties suitable for curved-path locations. The material selected depends on the daily cycle count, the required force, and the environment — moisture, chemical exposure, and temperature. Dimensional stability is critical for maintaining gear tooth contact ratio, tooth tip clearance, and overall geometry throughout the service life.
Quality Assurance and Manufacturing
Ever-Power good tensile strength nylon sliding gate racks are produced under ISO 9001:2015 quality management. Mould steel materials include S136H, NAK80, 718H, SKD61, H13, and 420 grades for injection production. Incoming polymer is verified for grade conformance before production. Tooth geometry, pitch accuracy, and dimensional inspection are performed on every batch. SGS and RoHS documentation is available for regulated applications. Production video documentation is available on request before shipment.
ISO 9001:2015 and Quality Certificates
Documentation with every order:
- ISO 9001:2015 inspection record — tooth pitch, module, cross-section dimensions
- Material datasheet — polymer grade, tensile strength, elongation at break
- SGS / RoHS compliance documentation available on request
- Shipping status notification during delivery; production video on request
Related Gear Products
Ever-Power manufactures the complete range of industrial gear types alongside plastic racks. Matched plastic gears, steel spur pinions, steel gear racks, and all gear types are available from the same source.
Plastic Gears
Nylon and POM pinions for all-plastic, lubrication-free rack and pinion drives.
Spur Gears
Steel spur pinions to mesh with nylon racks — the most common paired configuration.
Helical Gears
Helical pinions for quieter, higher-load rack drives and speed reducer stages.
Planetary Gear Sets
Compact reducers for servo motor to pinion shaft in precision plastic rack drives.
Bevel Gears
Right-angle drive stages for compact gear motor input to the rack pinion shaft.
Worm Gear Wheels
Self-locking worm reducers for vertical rack axes holding position without a motor brake.
Ring Gears
Large-diameter ring gears for rotary kilns, slewing drives, and large machinery.
Frequently Asked Questions
What nylon grade gives the best tensile strength for a heavy sliding gate?
For maximum tensile strength in a nylon sliding gate rack, specify MC nylon (MC901 cast nylon) at 80-100 MPa — approximately 20-30% higher than standard PA66 extruded nylon at the same cross-section. For gates above approximately 500 kg leaf weight, or commercial/industrial gates with high daily cycle counts and potential wind loading above 100 N/m², MC nylon at M6 is the correct specification. If the gate weight is very heavy and a plastic rack cannot meet the required safety factor at any practical module and cross-section, a zinc-plated steel rack should be evaluated as an alternative — steel provides substantially higher tooth load capacity at the cost of lubrication maintenance and eventual corrosion.
How many rack sections do I need for a specific gate travel?
The total rack length required equals the gate travel distance plus the full diameter of the drive pinion (so the pinion remains engaged at both the fully open and fully closed positions). Round up to the next whole number of 1,000 mm sections. For example, a gate with 4,500 mm travel and a 60 mm diameter pinion requires (4,500 + 60) / 1,000 = 4.56 sections — order 5 sections of 1,000 mm each. Leave a 0.5-1.0 mm gap at each section butt joint for thermal expansion.
What happens if the gate motor pinion module does not match the rack?
A module mismatch between the gate motor pinion and the rack causes immediate and severe tooth damage on first operation — the mismatched teeth generate concentrated contact stress at the tooth tips that the polymer cannot withstand, resulting in tooth chipping or fracture within the first few gate cycles. Always verify the gate motor pinion module before ordering the rack. If the gate motor module is not stated in the manufacturer documentation, measure the pitch of the existing rack (if available) using a gear tooth calliper and calculate module as pitch / pi. Contact us with the pitch measurement if you are uncertain — we will identify the module and recommend the correct rack specification.
Request a Quotation for Good Tensile Strength Nylon Sliding Gate Racks
Specify your gate weight, module, section count, and required certifications. We return a price within 24 hours. Injection moulding and CNC machining available.
