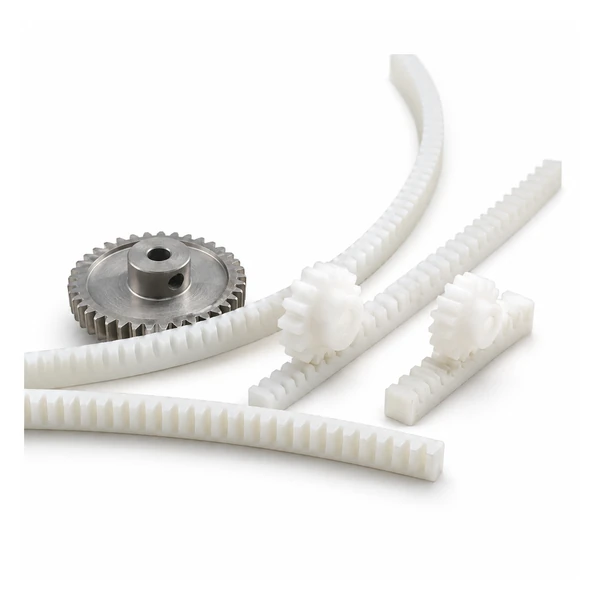

Flexible Gear Rack and Pinion | High Precision Polyamide Nylon PA66 Plastic Gear Rack

✅ Good Tensile Strength

PA66 nylon provides adequate tensile strength for the light to moderate tooth loads typical of flexible rack applications — gate drives, greenhouse ventilation, and curved-path automation.

✅ High Impact Resistance

The polyamide polymer tooth absorbs sudden impact loads without fracture, protecting both the rack and the mating pinion in applications subject to shock — gate end-stop impacts and irregular terrain vibration in agricultural drives.

✅ High Heat Resistance

PA66 nylon maintains structural integrity up to approximately 130°C continuous service temperature — suitable for drives near motors, in warm enclosures, or exposed to direct summer sunlight on outdoor gate installations.

✅ Good Self-Lubrication

The inherent low friction surface of PA66 nylon against a steel pinion generates a self-lubricating polymer film at the tooth contact, eliminating the external lubricant replenishment schedule required for steel rack drives.

✅ Good Chemical Stability

PA66 resists organic solvents, fuels, and the fertiliser salts and pesticide sprays encountered in agricultural and greenhouse environments, where a steel rack would require frequent re-coating.

✅ Low Water Absorption

PA66 has lower moisture absorption than PA6 (approximately 1.5% vs 3.5% at equilibrium humidity), resulting in less pitch-error growth in outdoor and humid environments — important for multi-section butted long-gate drives.

🔧 Lubrication

For flexible nylon racks in dry indoor applications, no external lubrication is required — the self-lubricating PA66 surface provides adequate boundary lubrication throughout service life. In outdoor applications with abrasive dust or grit, a light application of PTFE-based dry lubricant spray to the tooth flanks after cleaning prevents abrasive wear.

⛒ Cleaning

Keep the rack teeth free from debris, dirt, and foreign particles using a soft brush or dry cloth. In agricultural and greenhouse environments, periodic cleaning removes dried fertiliser deposits and compacted soil that would act as abrasive between the tooth flanks and pinion.

🔎 Inspection

Periodically inspect for worn or chipped teeth, cracks, deformations, or excessive backlash. PA66 nylon wears gradually and visibly — the first sign of wear is tooth flank surface dulling followed by measurable tooth thinning. Promptly address any abnormalities to prevent further degradation.

📋 Load Monitoring

Ensure the rack is not subjected to loads exceeding its rated tooth load capacity. Overloading a flexible nylon rack generates heat at the tooth contact zone, which softens the polymer and accelerates both wear and permanent deformation. Monitor motor current draw as an indirect load indicator in automated gate systems.

ISO 9001:2015 and Quality Certificates

Documentation with every order:

• ISO 9001:2015 inspection record — pitch, tolerance ±0.005 mm, cross-section dimensions
• CMM verification report available on request for precision applications
• PPAP documentation and RoHS compliance certificate for regulated applications
• Material certificate — PA66 grade, tensile strength, heat deflection temperature

Plastic Gears

Nylon and POM pinions for all-plastic, lubrication-free rack and pinion drives.

View Products

Spur Gears

Steel spur pinions to mesh with nylon racks — the most common paired configuration.

View Products

Helical Gears

Helical pinions for quieter, higher-load rack drives and speed reducer stages.

View Products

Planetary Gear Sets

Compact reducers for servo motor to pinion shaft in precision plastic rack drives.

View Products

Bevel Gears

Right-angle drive stages for compact gear motor input to the rack pinion shaft.

View Products

Worm Gear Wheels

Self-locking worm reducers for vertical rack axes holding position without a motor brake.

View Products

Ring Gears

Large-diameter ring gears for rotary kilns, slewing drives, and large machinery.

View Products

What is the minimum bending radius for a flexible PA66 nylon gear rack?

The minimum bending radius depends on the rack cross-section dimensions and the PA66 grade. A typical flexible nylon gate rack in M4 with 15 mm face width and 8 mm body thickness can be bent to a radius of approximately 300-500 mm without inducing visible tooth-flank distortion or permanent deformation in the rack body. Tighter bending radii require thinner rack sections or a softer polymer grade. Send us your required bending radius and rack cross-section and we will advise whether a standard or custom formulation is appropriate.

Can a flexible gear rack be used outdoors in all weather conditions?

Yes. PA66 nylon is UV-stabilised, maintains adequate toughness at -30°C to -50°C (depending on grade), and resists rain, frost, and condensation without surface degradation. The operating temperature ceiling of approximately 130°C continuous for PA66 is not reached in outdoor ambient conditions. For particularly harsh UV environments — tropical climates or high-altitude locations with intense UV flux — specify a UV-stabilised PA66 grade, which includes a UV absorber package to resist surface yellowing and surface cracking over extended outdoor service life.

How does CAD design service work for custom flexible rack specifications?

Submit your motion path geometry, required stroke length, bending radius, load requirement, and any existing hardware drawings to our technical team. We will produce a CAD drawing of the recommended flexible rack specification — cross-section, module, tooth profile, total length — and return it for your review and approval before production commences. If you have an existing worn rack without a drawing, send us a sample and we will measure and reverse-engineer the specification. There is no charge for this engineering service for production orders; for development projects a nominal drawing fee applies that is credited against the first production order.
