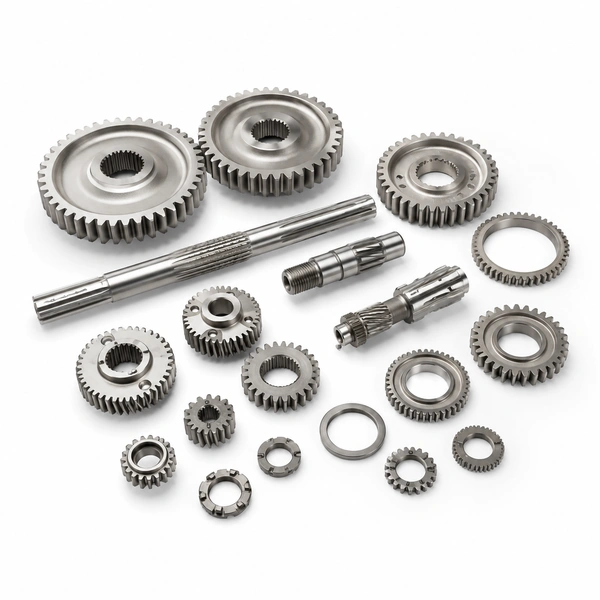

Pièces mécaniques personnalisées OEM Engrenages de tracteur

Korea Ever-Power manufactures specialised tractor gears and OEM customised mechanical parts for tractors — the complete range of transmission, PTO, differential, and final drive gear components used in agricultural tractors from sub-compact utility tractors to large four-wheel-drive agricultural tractors. Customer drawings and samples are welcome. Weight range: 100 g to 30 kg per component. Materials: 20CrMnTi, 20CrMo, 20CrMnMo, 40Cr, 45#, 20#, HT200, 30CrMnTi, 22CrMoH. Standard: ISO 9001 / 14001, TS 16949. All standard and custom tractor gear configurations produced to OEM specification.

Korea Ever-Power's OEM tractor gears programme covers: mould design and making (20+ years' experience, CNC 5 sets, WEDM 4 sets, EDM 5 sets, die spotting machine 1 set); die-casting (100 g to 30 kg, aluminium and zinc alloy); CNC machining (debur, drilling, tapping, milling, grinding, tolerance 0.01–0.05 mm); and surface finishing (sand casting, polishing, plating, painting, powder coating, anodising).

Main Transmission Gears

The tractor's main gearbox provides multiple speed ranges (typically 8–24 forward speeds, 4–8 reverse) by combining a range change section and a speed change section. The main transmission gears are large-module (M4–M8) constant-mesh helical or spur gears in 20CrMnTi or 20CrMnMo carburised alloy steel. These gears must handle full engine torque (200–600 Nm) under repeated shift engagements and sustained heavy draught loading — requiring deep case hardening (1.2–1.8 mm case depth) and precision grinding to maintain mesh quality over 5,000+ hours of service.

PTO (Power Take-Off) Gears

Tractor PTO gears transmit engine power from the transmission to the implement PTO shaft — standardised at 540 RPM (small tractors) or 1,000 RPM (large tractors), independent of ground speed. PTO gears are driven through a dedicated shaft from the engine or gearbox and must handle the shock loads of implement engagement (sudden connection of PTO-driven balers, mowers, and slurry tankers). Material: 20CrMnTi or 22CrMoH, carburised and quenched. PTO shaft spline teeth also machined by Korea Ever-Power to ISO PTO specification.

Engrenages différentiels

Tractor differential gears allow the left and right rear wheels to rotate at different speeds when cornering — essential for field turning without tyre scrub damage. The differential sun gears, planet gears, and ring gear must handle the full rear-axle torque under the shock loading of field ruts, rocks, and hard ground impacts. Material: 30CrMnTi for the ring gear (large, complex geometry); 20CrMnTi for sun and planet gears. Tractor differentials can also be locked for maximum traction in difficult field conditions — the differential lock mechanism is part of Korea Ever-Power's tractor gear component range.

Final Drive Gears (Trumpet Housing)

The tractor's final drive (inside the trumpet-shaped rear axle housing) provides the last stage of speed reduction and torque multiplication from the differential to the drive wheel. A large-module (M8–M14) spur or helical gear reduction (typically 3:1 to 6:1) gives the tractor its high ground force traction capability. The final drive planet or spur gears are among the largest and most heavily loaded tractor gears — material: 42CrMo or 40CrNiMo, quenched and tempered, surface hardened. Korea Ever-Power's largest tractor gear components (up to 30 kg) are typically final drive gears.

Hydraulic Pump Drive Gears

Tractor hydraulic system gear pumps are driven from the engine through a dedicated gear train at constant speed regardless of tractor transmission ratio. The hydraulic pump drive gears (M2–M4, fine pitch, high accuracy) provide the oil flow for the tractor's three-point linkage, remote hydraulic outlets, power steering, and brake actuation systems. These are high-speed precision gears requiring tight pitch accuracy for low noise and smooth pressure delivery — material: 40Cr or 45# steel, induction hardened.

Creep Speed and Range Change Gears

Modern tractors include creep speed gear sets that reduce the minimum tractor ground speed to as low as 50 m/hour for transplanting, harvesting, and precision seedbed operations. The creep gear set is typically an additional epicyclic (planetary) stage engaged between the main gearbox and the rear axle. The high reduction ratio required (20:1 to 50:1) in a compact housing makes planetary gears the standard for creep speed stages in modern tractor transmissions.

Mould Design and Making

20+ years of design and making experience. Communication and optimisation of design to save cost and achieve the best solution. Guaranteed qualified sample within the promised period. Equipment: CNC 5 sets, WEDM 4 sets, EDM 5 sets, die spotting machine 1 set. Mould design for gear blanks, housing castings, and die-cast components supports the full range of tractor gear part production processes.

Die-Casting

Die-casting weight range: 100 g to 30 kg. Materials: aluminium alloy and zinc alloy. Die-cast tractor gear components include hydraulic pump housing covers, differential housing end covers, transmission case side plates, and PTO output shaft covers — lightweight aluminium components that require tight dimensional accuracy for correct sealing and bearing alignment in the assembled transmission.

CNC Machining

Full CNC machining capability: deburring, drilling, tapping, milling, grinding. Tolerance: 0.01–0.05 mm by multi-axis CNC machining. Tractor gear tooth forms machined by NC gear hobbing (OD from 30 mm to 600 mm) with ground finish for critical precision gears. Shaft bore, keyway, and spline machining to ISO tolerance grades H6/H7 for bearing and PTO interface fits.

Surface Finishing

Sand casting, polishing, plating (zinc, nickel), painting (primer + topcoat per OEM colour), powder coating (TGIC or polyester), anodising (aluminium components). OEM tractor gear suppliers typically require painted or powder-coated housing components to match the tractor manufacturer's colour scheme and corrosion protection standard — Korea Ever-Power's surface finishing capability covers these requirements.

Agricultural Tractors

Transmission gears, PTO gears, differential gears, and final drive gears for sub-compact (15–40 hp), compact (40–100 hp), utility (75–150 hp), and large (150–400 hp) agricultural tractors. Korea Ever-Power's weight range (100 g to 30 kg) and material range covers all tractor size classes from small orchard tractors to large four-wheel-drive field tractors.

Combine Harvesters

Gear components for combine harvester header drives, threshing drum drives, straw walker drives, and grain elevator drives. Combine harvester gears experience high cyclic loading from crop variation and the continuous high-speed operation of the threshing and separation systems — requiring the same carburised alloy steel specification as tractor transmission gears but with higher accuracy requirements for the noise-sensitive cab environment.

Construction Equipment

Gear components for skid steer loaders, compact track loaders, and utility vehicles that share tractor-type transmission layouts. Construction equipment gears face more severe shock loading than agricultural equivalents due to rock and hardscape surface impacts — Korea Ever-Power's 22CrMoH and 40CrNiMo material options with deep case hardening address this higher shock requirement.

Agricultural Truck and Transport

Gear components for agricultural transport vehicles — grain trucks, livestock transporters, and field transport trailers. These are commercially-registered vehicles requiring ISO TS 16949 quality management standards for the gear components Korea Ever-Power supplies — the same automotive-grade quality system that governs passenger car and truck gear production.

Can Korea Ever-Power manufacture tractor gears without customer drawings?

Yes — Korea Ever-Power accepts customer samples as the starting point for tractor gear production. The sample is measured, a drawing is produced for customer approval, and production proceeds to the approved drawing. If neither drawing nor sample is available, describe the tractor model, gear position (transmission, PTO, differential, final drive), and approximate gear dimensions (module, tooth count, face width, bore) and Korea Ever-Power's engineering team will advise.

What quality certifications does Korea Ever-Power hold for tractor gear production?

Korea Ever-Power is certified to ISO 9001 (quality management), ISO 14001 (environmental management), and TS 16949 (automotive and agricultural equipment supplier quality). These certifications are the standard requirements for OEM tractor gear supplier qualification at major agricultural equipment manufacturers. Certification documents are available on request for new supplier qualification processes.

What is the CNC machining tolerance achievable for tractor gear bores and keyways?

Korea Ever-Power's CNC machining achieves tolerances of 0.01–0.05 mm by multi-axis CNC machining. For tractor gear bore diameters (typically requiring H6 or H7 tolerance for bearing and shaft fits), 0.01–0.02 mm tolerance is achievable on bores up to 150 mm diameter. Keyways and splines are machined to DIN or ISO specifications. For tighter tolerances on specific features, contact Korea Ever-Power with the drawing and tolerance requirement for feasibility confirmation. Contact Korea Ever-Power to begin.

"We produce replacement tractor transmission gear sets for the Korean aftermarket and source OEM tractor gears from Korea Ever-Power. 20CrMnTi carburised, case depth 1.3 mm measured at incoming inspection — within our 1.0–1.6 mm spec. Bore to OD runout: 0.02 mm for 12 pcs checked — within H6 tolerance. TS 16949 certificate supplied for our distributor qualification documentation. Price 18% lower than previous domestic supplier at equivalent quality."

Kim Jae-won  |  Agricultural Parts Distribution Manager, Incheon Agricultural Equipment Co.  ·  Q1 2026

"We are a compact tractor OEM and source PTO gear sets from Korea Ever-Power. Customer drawings accepted in STEP format. Korea Ever-Power optimised our gear geometry (slightly increased face width, cost-neutral) for longer fatigue life before production. Sample turnaround: 14 days. First article inspection (FAI) report supplied before bulk production approval. 22 months in series production; zero warranty gear failures."

Lee Sang-ho  |  Compact Tractor Drivetrain Engineer, Gyeonggi Agricultural Machinery Co.  ·  Q4 2025
